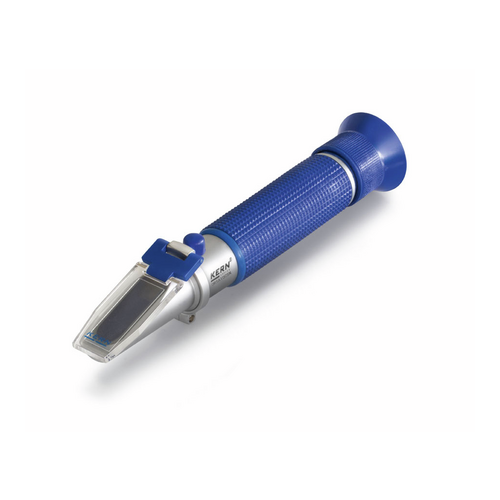

KERN Analogue Hand Refractometer

The KERN ORA-P series offers universal, maintenance-free analogue hand refractometers ideal for daily and intensive applications. With their robust construction, advanced optical systems and automatic temperature compensation , these refractometers offer consistently high performance even under changing conditions.

Multiple Selectable Scale Divisions: With several scale divisions that eliminate manual conversion, the risk of application errors is minimised. These scales are specially developed and precisely calculated, with thin and clear lines for optimum legibility.
High-quality Optics and Prism Cover: The optical system and prism cover are made of specially selected materials, allowing measurements with minimal tolerances. This ensures consistently accurate results.
Adjustable Eyepiece: Each model is equipped with an eyepiece that can be easily adjusted to different vision levels without friction, increasing ease of use.
Automatic Temperature Compensation (ATC): The built-in ATC function ensures accurate measurements at different ambient temperatures (10 °C - 30 °C), eliminating the influence of temperature variations.

Application areas:
Hospitals, Doctors' offices, Medical training institutes, Old people's and nursing homes, Sports medicine.

Technical specifications:
Scope: Urine
Measurement method: Refraction
Measuring range Refractive index: 1.3330 nD - 1.3600 nD
Measuring range serum protein: 0g/100ml - 12g/100ml
Measuring range urine: 1,000 - 1,050
Measuring temperature: 10 °C - 30 °C
Dimensions: 178 x 40 x 40 mm
