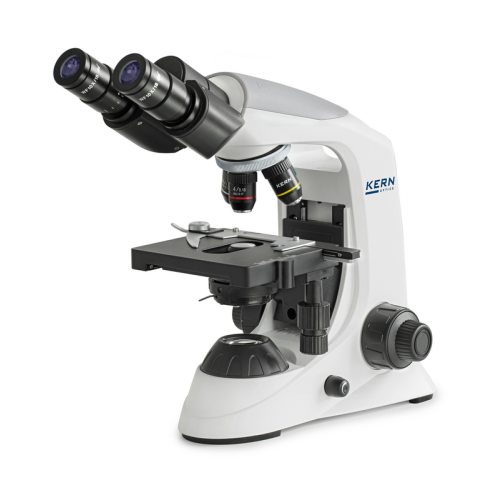

KERN OBE 122 Microscope

The KERN OBE 122 is distinguished by its exclusive and dynamic design, unmatched in robustness and ergonomics. A clever storage compartment at the back offers a practical solution for quick storage of your power cable. Thanks to the USB connection, power supply via an external power bank is also possible.

Powerful Illumination: The impressive, infinitely dimmable 3W LED provides brilliant illumination of your sample.
Integrated Butterfly Tube: A special feature is the standard integrated butterfly tube, which provides the ideal angle of incidence.
Advanced Condenser: The height-adjustable and focusable 1.25-Abbe condenser with aperture ensures optimum light focusing, which is an additional quality feature of the OBE series.
Efficient Cross Table: The fully equipped cross table can be adjusted in height using coarse and fine adjustment on both sides. For fast work and easy specimen shifting, the ergonomically designed coaxial control is ideal.
Comprehensive Accessories: A wide selection of diverse eyepieces and objectives are available as accessories.

Scope:
Training, Haematology, Sediments, Doctors' offices.

Technical Specifications:
Optical system: Finite
Tube type: Binocular
Eyepieces: Magnification 10x ø18 mm
Lens quality: Achromatic
Screw-in spots: 4
Illumination type: LED
Illumination intensity: 3W
Focus mechanism: Coarse/fine focus coaxial
Dimensions: 360 x 150 x 320 mm
