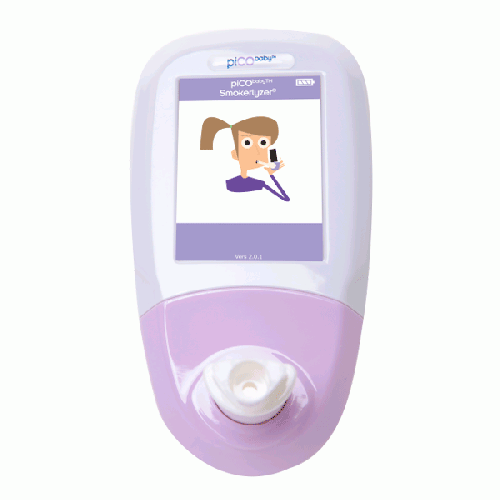

The piCO Baby CO meter:
The piCO Baby Smokerlyzer is specially designed for use with pregnant smokers. The expectant mother sees the effects of smoking both on herself and on the unborn baby.
The piCObaby™ CO monitor is a valuable tool for pregnant smokers to visualise the effects of smoking on themselves and their unborn baby. This is possible thanks to the meter's clear green, orange, red stoplight system.
The results are visible with the ppm measurement, %COHb and, for pregnant women, also the foetal ppm measurement and %FCOHb conversion. This means that the effects of smoking (CO) are made transparent to both the expectant mother and the unborn child. For any healthcare provider dealing with pregnant smokers, this is a must-have to make (quitting) smoking discussable, to give the smoker extra motivation to make a quit attempt.

Features and benefits of the piCOBaby Smokerlyzer CO monitor:
- Analyses carboxyhemoglobin and carbon monoxide ppm levels.
- The monitor immediately displays exact ppm, % COHb and % FCOHb results.
- Results can be recorded and interpreted quickly and easily.
- Easy-to-use interface
- Large touch screen
- Familiar traffic light system of green, amber and red, making CO levels instantly identifiable to patients
- Uses D-piece™ to filter out 99% of airborne bacteria
- SteriTouch® technology for improved infection control
- SteriBreath™ single-use nozzles for excellent, low-cost infection control
- PC-interactive with COdata+™ software, free with the piCO™ Smokerlyzer®

Technical specifications of the piCO Baby CO monitor:
- Concentration range: 0-150ppm
- Screen: Colour touch screen
- Detection method: Electrochemical sensor
- Repeatability: ≤±5%
- Accuracy: ≤±2ppm/5%*
- Power supply: 3x AA (LR6 or equivalent), up to 1000 min,
1x CR2032 lithium button cell battery
- Response time: <30 seconds
- Operating temperature: 15-40°C
- Temperature during storage/transport: 0-50°C
- Pressure during use/storage/transport: Atmospheric ±10%
- Operating humidity: 15-90% RH (non-condensing)
- Storage/transport humidity: 0-95% RH (non-condensing)
- Sensor lifetime: 5 years
- Sensor sensitivity: 1ppm
- Sensor deviation: <5% per year
- Dimensions: Approx. 37 x 77 x 140 mm
- Weight: Approx 215 g (including batteries)
- H2 cross interference: ≤8%

Ideal for research, clinical trials and in-depth smoking cessationadvice supplied by:
- Obstetricians
- Gynaecologists
- Maternity nurses
- Smoking cessation services
- Pharmacies
- Health inspectors
- Tobacologists
- General practitioners
- Hospitals
