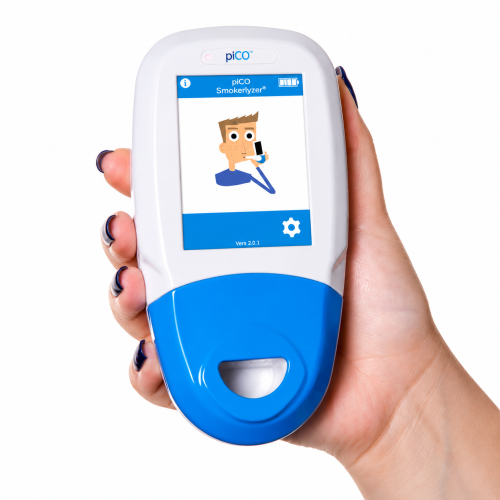

PiCO Smokerlyzer CO breath monitor for smokers.
The PiCO Smokerlyzer is the CO monitor for all your needs, including use in clinical research and smoking cessation services.
The PiCO Smokerlyzer carbon monoxide monitor is a visual aid to motivate smokers to stop smoking.

Features and benefits of the PiCO Smokerlyzer:
- Analyses carboxyhaemoglobin and carbon monoxide ppm levels.
- Provides profiles for adults and adolescents.
- The monitor displays the exact ppm and % COHb results immediately.
The results can be recorded and interpreted quickly and easily.
- Easy-to-use interface
- Large colour touchscreen
- SteriTouch technology for improved infection control
- Familiar traffic light system of green, amber and red, allowing patients to identify CO levels at a glance
- Uses a D-piece to filter out 99% of airborne bacteria
- SteriBreath single-use mouthpieces for excellent, cost-effective infection control
- PC-compatible with COdata+ software, included free with the piCO Smokerlyzer

Technical specifications of the PiCO CO monitor:
- Concentration range: 0–150 ppm
- Display: Colour touchscreen
- Detection method: Electrochemical sensor
- Repeatability: ≤±5%
- Accuracy: ≤±2 ppm/5%*
- Power supply: 3x AA (LR6 or equivalent), up to 1,000 minutes; 1x CR2032 lithium button cell battery
- Response time: <30 seconds
- Operating temperature: 15–40°C
- Temperature during storage/transport: 0–50°C
- Pressure during use/storage/transport: Atmospheric ±10%
- Humidity during use: 15–90% RH (non-condensing)
- Humidity during storage/transport: 0–95% RH (non-condensing)
- Sensor service life: 5 years
- Sensor sensitivity: 1 ppm
- Sensor drift: <5% per year
- Dimensions: Approx. 37 x 77 x 140 mm
- Weight: Approx. 215 g (including batteries)
- H₂ cross-interference: ≤8%

Ideal for research, clinical trials and in-depth advice on giving up smoking provided by:
- Smoking cessation services
- General practices
- Schools
- Pharmacies
- Health inspectors
- Tobacco specialists
- General practitioners
