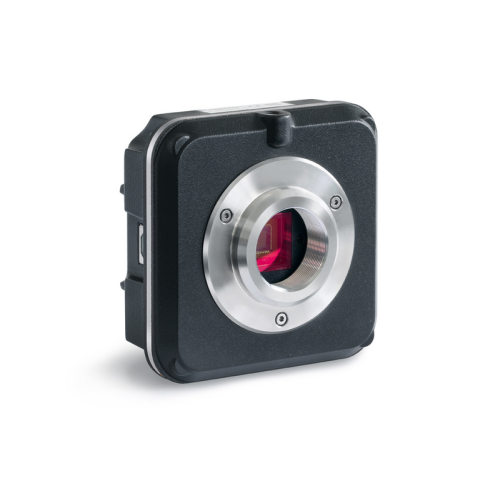

KERN microscope camera

The KERN microscope camera offers universal usability and can be easily connected to microscopes, laptops or PCs via a USB 2.0 cable. This camera uses proven CMOS technology, resulting in fast and clear image display.

Universal Connectivity: Thanks to the USB 2.0 connection, the camera can be easily connected to microscopes, laptops and PCs for instant and flexible applications.
High Quality Image: CMOS technology ensures clear and fast image display, which is essential for accurate observations and analysis.
Suitable for Multicoloured Applications: This camera is ideal for demanding applications such as dark-field, phase-contrast and fluorescence applications, making it a versatile tool in various scientific and industrial environments.
Optimal Synchronisation and High Image Rate: The camera offers a high image rate and stable image performance, which when combined with the included Microscope VIS software significantly simplifies your daily work.
Energy-efficient: The system is powered via the USB cable, so no additional power supply is needed, contributing to a tidy and efficient workplace.

The camera can be connected to the microscope via a corresponding (not included) C-mount adapter.

Technical specifications:
Resoluti: 5.1 MP
Sensor type: Aptina CMOS
Sensor size: 1/2.5
Colour depth: Colour
Pixel size: 2.2 x 2.2 µm
Resolution range 1: 7 FPS
Resolution range 2: 28 FPS
Resolution range 3: 101 FPS
Exposure time: 0.2ms - 2000ms
Exposure method: Rolling Shutter
Interfaces: USB 2.0
Dimensions: 80 x 80 x 45 mm
