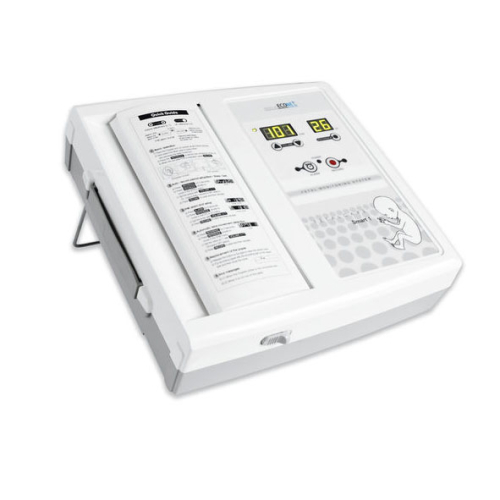

Fetal monitor Smart 1

Features of the foetal monitor CTG Smart 1:

- Alphanumeric display of foetal heart rate and uterine contraction
- High sensitivity thanks to 1 MHz probe technology
- Easy-to-read printout in A4 format with CTG - Report
- Detection of the child's movement (foetal movement)
- Acoustic alarm, adjustable alarm limits of the heartbeat
- Intuitive operating concept with built-in concise manual
- Print speed adjustable: 1, 2 or 3 cm / min.
- Volume of foetal heart tones adjustable
- Easy to transport thanks to integrated carrying handle

With software to connect the monitor to Pc. PC interface RS - 232.

Smart 1 fetal monitor is supplied with:

- 1 ultrasound probe with 9 crystals and 1 MHz
- 1 toco probe for uterine contraction
- 2 rolls of paper
- electronic event marker
- straps for probe attachment
- power cord and user manual
- ultrasound gel

Technical details of the fetal monitor:

Dimensions: (WxDxH) 296 mm x 305.5 mm x 97.5 mm
Weight: approx. 4 kg
Voltage: 240 volts AC / 50 - 60 Hz
Power consumption: 18 volts 2.5 amps
Paper size: 215 mm (A4)

Optional accessories with this foetal monitor:

Mobile trolley and stand
