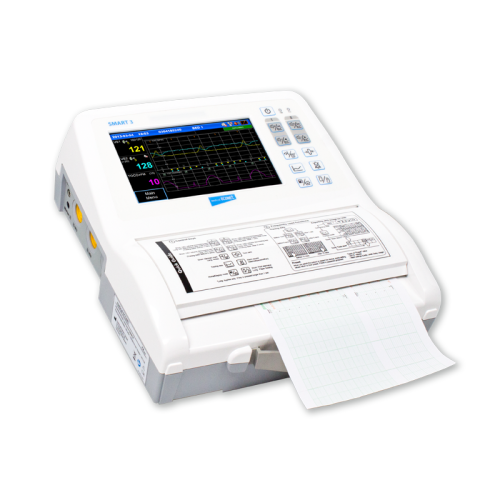

Fetal Monitor Smart 3, CTG monitor for twins
with display of fetal heart rate of two fetuses and uterine contractions alphanumerically and in
curve form.
Features Smart 3 Twin Foetal Monitor with 7" TFT Touch Screen Colour Display:
- Registration of child movements of both foetuses (Foetal movement)
- High sensitivity thanks to probe frequency of 1 MHz
- Printing of all parameters in A5 format
- Integrated CTG basic analysis incl. STV
- Documentation of system data on the trigger call
- Freely configurable note list for use during CTG recording
- Adjustable alarm limits and acoustic alarms
- 72 hours of data storage and volume control
- Battery usage: up to 2 hours with fully charged battery
- Transfer of stored data to USB memory (JPEG)
- Live transmission to free central software for archiving data on PC
Optional:
- Rechargeable battery
- Acoustic stimulator
- Central software with up to 16 devices that can be connected
- Networkable via LAN for data transfer LAN,
Wi-Fi converter to be ordered separately
Smart 3 fetal monitor comes with:
- 2 ultrasonic probes with 1 MHz
- 1 toco probe for uterine contraction
- 1 patient marker
- 2 rolls of paper
- 1 ultrasound gel
- CTG belt set (3 pcs.)
- Power cable
Technical details of the foetal monitor:
Dimensions: 296 (W) x 305.5 (D) x 97.5 (H)
Weight: 2.9 kg
Power supply: mains or battery power
Voltage: 100-240 volts AC / 50-60Hz / 1.5A
Power consumption: 60 watts (max.)
Safety: Class II / Type BF
Humidity: 30 x 85%
Operating temperature: 10 ° x 40 ° C
Pressure: 70 x 106 KPa
