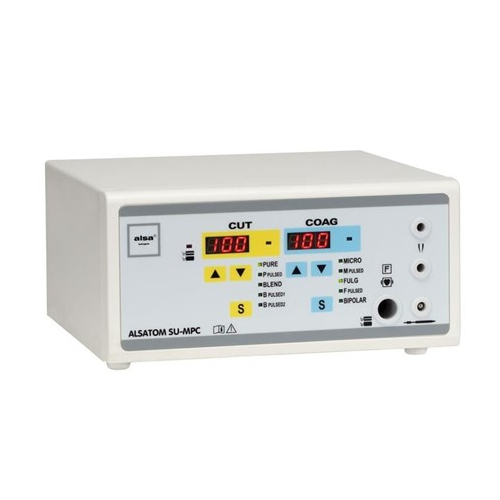

Alsatom SU 100MPC coagulator

The Alsatom is a mono- and bipolar electro coagulator. With the different electrodes
can easily cauterise blood vessels and remove warts.
The Alsatom MPC system is a new generation of state-of-the-art electrosurgery devices.
The process is microprocessor-controlled, guaranteeing safety
and precision in surgical procedures. The Alsatom SU 100MPC coagulator has different
modes for a variety of applications. For safety reasons, a
audible tone.
These devices can be used for the following applications: monopolar
cutting/coagulation function, monopolar coagulation, monopolar cutting or coagulation under
liquid using small instruments and bipolar coagulation during small
or medium-sized operations.
These devices can be used for the following areas:
gynaecology, dermatology, plastic and aesthetic surgery, ORL, maxillofacial surgery,
other surgery, gastroenterology, veterinary.

Available functions:
CUT: Without modulation, for cutting without haemostasis
BLEND: modulated combination of cutting current and haemostasis for coagulation
COAG: with high voltage "fulguration" for non-contact coagulation with strong superficial effect. Indispensable for various operational requirements.
MICRO: with low voltage "pin-point, soft", very precise and with a very good effect in depth (e.g. epilation in dermatology
BIPOLAR: without modulation and very precise "micro"

Supplied monopolar accessories:
- Pneumetic waterproof foot pedal
- Sterilisable handle for electrodes with cable 2.5 m long
- Neutral pate with 2.5 m cable
- Fastening strap for neutral electrode
- Alsatom lancet electrode straight (E1)
- Alsatom needle electrode thick straight (E5)
- Alsatom thin needle electrode straight (E7)
- Alsatom button electrode thickness 2.5mm straight (E12)
- Alsatom button electrode thickness 4mm straight (E14)
- Alsatom loop electrode 5mm (E21)

Technical specifications
Dimensions 31×24×10 cm
Weight 4.2 kg
Power max. 120 Watt
Input voltage 220/230V
Operating frequency 475 kHz
Monopolar and bipolar
Automatic power adjustment
Pneumatic footswitch
Meets IEC 60601-2-2 III standards

Only accessories for monopolar use are included.
