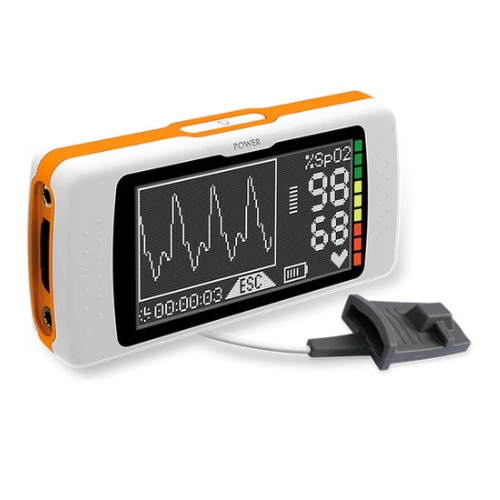

The Spirodoc Oximeter is a portable, pulse oximeter ideal for general sampling and continuous monitoring of respiratory patients undergoing rehabilitation.

The recorder uses MIR's 3D Oximeter technology with a tri axial motion sensor to correlate the patient's saturation level (%SpO2) with his/her own saturation level physical activity. The oximeter automatically measures physical activity and body position and is recorded while standing, walking or sleeping.
The Spirodoc Oxi is suitable for use in 6-minute walk tests, sleep oximetry and for continuous use monitoring of daily physical activity. For 6-minute walk tests, the Spirodoc can measure the level of oxygen therapy required by the patient.

The device has two modes: professional use and home use. The modes can be applied by the patient depending on the application. While using the spirodoc on a patient, the device can be put into patient mode with an "eDiary". This allows patients to answer pre-configured questions about their symptoms for the day.

The Spirodoc is powered by a long-life rechargeable battery and has a large internal memory for hours of oximetry recording. The device features a high-resolution touchscreen display with simple and clear display of %SpO2 and HR measurements with view of the plethysmographic curve. Results can be downloaded with the free MIR WinspiroPR PC software for further analysis and comprehensive reporting.

Spirodoc pulse oximeter specifications

• Pulse oximeter with on-screen results (by plethysmographic curve)


• Flow sensor: digital turbine


• flow range ±16L/s


• Flow accuracy: ±5% or 200 ml/s


• Volume accuracy: ±3% or 50 ml


• 3D accelerometer with motion analysis


• Quick entry of symptoms on screen


• Dynamic resistance at 12L/s: <0.5 cmH2O/L/s


• Temperature sensor: semiconductor (0-45°C)


• LCD touch screen with backlight


• Resolution: 128x64 pixels

Simple SpO2 and HR measurements
SpO2 range: 0-99% (Accuracy: ±2% (70-99% SpO2)
Heart rate range: 30-254 BPM (Accuracy: ±2 BPM or 2%)

Pulse oximeter parameters measured (default)
SpO2 [Baseline, Min, Max, Average], Heart rate [Baseline, Min, Max, Average], T90% [SpO2<90%], T89% [SpO2<89%], T88% [SpO2<88%], T5% [ΔSpO2>5%], ΔIndex [12s], SpO2 events, pulse rate events [bradycardia, tachycardia], pedometer, motion [VMU], recording time, analysis time

Sleep analysis measured parameters
Body position, SpO2 events, desaturation index (ODI), desaturation [mean value, mean duration, longest duration, lowest peak], ΔSpO2 [min. decrease, max decrease], total pulse variations, pulse rate index, NOD89% [SpO2<89%; >5min], NOD4% [SpO2 Basal-4%; >5min], NOD90% [SpO2<90%; Nadir<86%; >5min]

6MWT (measured parameters for the 6-minute walk test)
O2 distance, estimated distance, distance walked, predicted distance [min, default], TΔ2% [SpO2≥2%], TΔ4% [ΔSpO2≥4%], time [rest, run, recovery], desaturation area/distance Optional data input: Borg Dyspnoea [Baseline, End, Change], Borg Fatigue [Baseline, End, Change], Arterial blood pressure [Systolic, Diastolic], Administered oxygen

Spirodoc is the first "3D oximeter" to include a three-axis motion sensor to correlate saturation level (%SpO2) with physical activity (gait counter, motion analysis and VMU).

Watch the video below for more product information on the Spirodoc Spirometer and Oximeter

The Spirodoc is also available in other versions
Spirodoc Spirometer
Spirodoc Spirometer + Oximeter.
