Magnifier luminaire OPTICLUX Option Woodlamp D med opticlux 10-1 P TX
OPTICLUX modern magnifier luminaire.
✓Robustmagnifier with 1.9 times magnification
✓Thelatest LED modules
✓Ergonomicallyproven arm hinges
✓Intuitiveoperation.
✓Approvedmedical device for examinations
✓Largelight field in daylight quality
✓Loupe diameter(Ø 160 mm, acrylic lens 3.5 dpt)
✓Excellent colour rendering properties
✓Scratch resistance 6 500 K LEDs reduce shadowing
✓Maintenance-free service life
The OPTICLUX magnifying lamp is used in dermatology, in hospitals and human medicine, dental and veterinary practices, in laboratories and also for inspecting sterilised objects.
Magnifier luminaire OPTICLUX combines two lighting modes in one device: daylight white light and wood light. This allows different examinations to be carried out with just one lamp. With other Wood luminaires, the room must be completely darkened. Thanks to the powerful BLB LEDs, the Opticlux does not require this.
Specifications:
✓colour temperature daylight white 6500 K
✓Very good colour rendering Opticlux: CRI > 93, R9 > 90, (skin and red tones are rendered almost optimally daylight)
✓R13 > 95
✓homogeneous and bright light field (6 000 lx / 0.15 m)
Steplessly dimmable
Universal attachment
Easy to clean
✓choice with wood light: 365 nm.
OPTICLUX magnifier is the only magnifier luminaire in its segment available as a ceiling version and pin version with mounting accessories for walls, tables, rails and roller stands.
Mounting can be done:
-with a wall rail (you will need the wall rail + wall rail claw for this)
-with a table clamp
-with a wall fitting, Derungs wall bracket white or aluminium

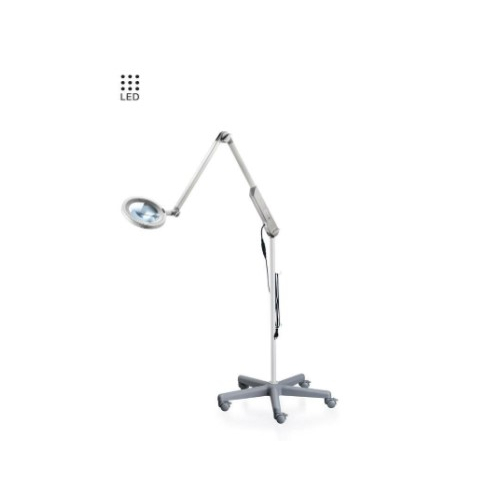

-on a roller stand
-with a ceiling mount.
Ergonomic operation
Spring-balanced arm and friction joints ensure smooth operation without sinking the luminaire head
Flexible positioning
Long luminaire arm allows long reach up to a radius of 142 cm
Relaxes the eyes
90 LEDs ensure homogeneous illumination with little shadow; individual adjustment with stepless dimming, high light transmission thanks to special lens material
Precise positioning Light arm made of aluminium and fibreglass-reinforced friction joints ensure long service life and highly precise positioning despite low weight.
More economical and reliable operation
High-efficiency LED light technology saves energy and enables maintenance-free operation.
Accurate diagnosis
Skin changes look different under Wood light, such as favus, types of intertrigo or erythrasma LED light & dimming Wood light (365 nm).
- ERYTHRASMA (red fluorescence)
- MICROSPORIA (weak green fluorescence)
- FAVUS (stingy green fluorescence)
- TRICHOBACTERIOSIS AXILLARIS (yellow ochre fluorescence)
- PITYRIASYS VERSICOLOR (yellow ochre fluorescence)
- TUBEROUS SCHLEROSE (blue-white fluorescence versus normal skin)
- VITILIGO (blue-white fluorescence of depigmented areas)
- SCABIES (grey-white mite marks)
(Also for fluorescence diagnostics (FD) for in vivo diagnosis of dysplastic tissues and surface tumours associated with locally or systemically applied pigment, such as as PPIX or 5-ALA).
Other applications:
- Ideal magnification for inspecting sterilised goods
- Small treatments
- Daylight white LED light with 1.9x magnification
- Very homogeneous light field
- Precise, stable positioning without risk of the luminaire sinking
Excellent lighting properties:
- 3.5- dpt magnification
- Excellent colour authenticity CRI/Ra > 93 for best results and fatigue-free work table clamp on roller stand Quality control Detect subtleties:
- Very bright, dimmable light with optimum colour rendering
- Large magnifier diameter
- Distortion-free magnification supports systematic quality control [lx] Ceiling version Pin version for various mounting systems
- Optional Wood light: can be adapted to the existing ceiling height of the room
How well are colours reproduced compared to sunlight?
- sunlight has a colour rendering index of 100.
- At Ra 100, all colours of an object are recognised as in optimal daylight.
- The higher the colour rendering index, the more natural the colours are rendered. In medicine, the red test colour R9 plays a crucial role, as the differentiation of different red tones in tissues and blood is especially important. R13 is the test colour "skin tone" and is generally very important in skin treatments (for better recognition of veins and blood vessels), especially in medical practice and cosmetics. Customised lens cap is included with every delivery.
Available in different versions:
OPTICLUX 10-1 P TX pure white/grey D15.815.000
OPTICLUX 10-1 P TX pure white/grey UK - D15.850.000
OPTICLUX 10-2 P TX pure white/grey Wood light D15.814.000
OPTICLUX 10-2 P TX pure white/grey UK Wood light D15.851.000
OPTICLUX 10-1 C T1 pure white/grey direct feeding - D15.817.000
OPTICLUX 10-2 C T1 pure white/grey direct food Wood light D15.816.000
