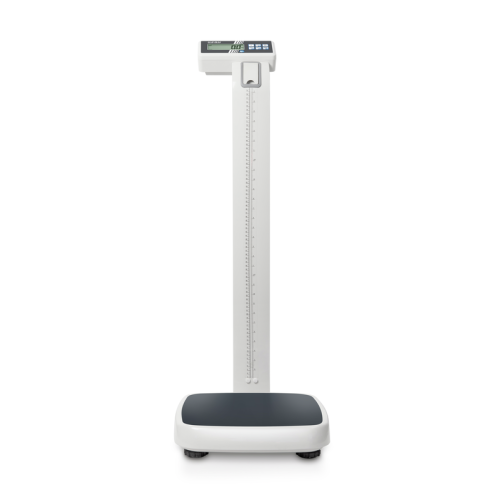

The Kern MPN scale is a WiFi personal scale suitable for professional use in medical diagnostics.

- Ice class III (calibration optional)
- Thanks to the integrated WiFi interface, this model is prepared for wireless transmission of weight values directly to the digital patient record. This eliminates any documentation or transmission errors that may occur with manual data transfer. Thanks to this technology, this model can be integrated into existing or future EMR and EHR systems, ensuring the future viability of your investment now
- KERN Universal Port (KUP): allows the connection of external KUP interface adapters, e.g. RS-232, USB, bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without installation work.
- Practical second display on the back of the scale, making it easily readable by patient and doctor or nursing staff
- The MPN 200K-1HM model features an elegantly integrated extendable length measuring rod in the tripod with a measuring range of 89 - 205 cm
- Patients with a body height of less than 80 cm can be measured directly with the gauge mounted on the tripod
- The ergonomically improved shape and robust design make this series ideal for daily use in a professional environment
- Safe and slip-proof set-up thanks to height-adjustable rubber feet
- Large surface with non-slip and wear-resistant plastic surface for optimum patient stability
- Hold function: in case of restless patients, a stable weighing value is determined and 'frozen' with the help of recording an average value. This leaves enough time to pay attention to the patient and then calmly read the weighing result
- Mother-child function: the parent's weight determined by weighing is reset to zero at the touch of a button. Afterwards, the parent and child are weighed together. The child's weight is then shown directly on the display. Particularly pleasant for small children, who can therefore be weighed safely and securely on the parent's arm
- BMI function for determining underweight/normal weight/overweight
- Fine display: Reading for 5 sec 1 decimal place extra with and 1 press of button
- Easy to transport thanks to the two integrated transport wheels
- Battery and mains operation possible, battery operation normal
- Work protection cover included in delivery

Configurations

MPN 200K-1HM Option with length measuring rod
MPN 200K-1PM Option without length measuring rod

Accessories to be ordered separately

- Test weight 346-82, OIML class M1
- Matrix needle printer 911-013
- Battery MBC-A08
- Work protection cap MPE-A01
- Work protection cap MPE-A01S05, 5 pieces
- Cleaning cloths MYC-01
- Software SCD-4.0
- Plug adapter EURO UK CH YKA-43
- Plug adapter EURO YKA-44
- RS-232 interface cable CFS-A01
- Label printer YKE-01
- RS232 Ethernet adapter YKI-01
- RS232 Bluetooth adapter YKI-02

Note

In the EU, calibration (conformity assessment according to NAWI 2014/31/EU) is prescribed by law for scales intended for use as medical devices; please order directly with the scale. For this purpose, we require information on the installation location and postal code.

Download Declaration of Conformity
