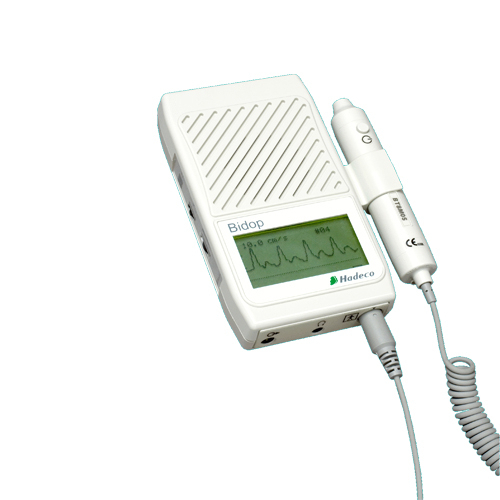

The bi-directional doppler Hadeco ES-100V3 has a USB computer interface: The Hadeco Smart-V-Link (Windows- Software) with FFT- Analysis can be used to display the results on a PC wee (Software and connection cable optional)
Through the Hadeco ES-100V3's smart microprocessor, real-time waveform, numerical data and heart rate are displayed.

Hadeco ES-100V3 bi-directional vascular doppler and foetal doppler clinical applications :
- Peripheral vascular examination
- Blood pressure of the lower extremity
- Blood pressure of the toes (PPG)
- Assessment of venous return (PPG)
- Foetal heart rate (2 MHz)

Technical specifications of Hadeco ES-100V3 doppler :
- Power supply : 9V, alkaline battery
- Battery life : approx. 2.5 hrs.
- Speaker output : by built-in speaker or headphone-
- Multi-frequencies : 2, 4 or 8 MHz
- Memory capacity : 30 enquiries
- Memory settings : (store, read and erase) direction, scale (time unit) language, etc.
- Display : 128x64 dots, STN LCD, numeric data and heart rate
- Serial port : USB
- Dimensions : 75 (W) x 140 (D) x 25 (H) mm
- Weight 350 gr, including battery and probe
- Safety standards : Conforms to IEC 6060-1-1

Probes available for this Hadeco ES-100V3 bi-directional doppler :
- foetal probe : 2 Mhz
- vascular probe : 4 MHz, 5 MHz or 8 MHz
