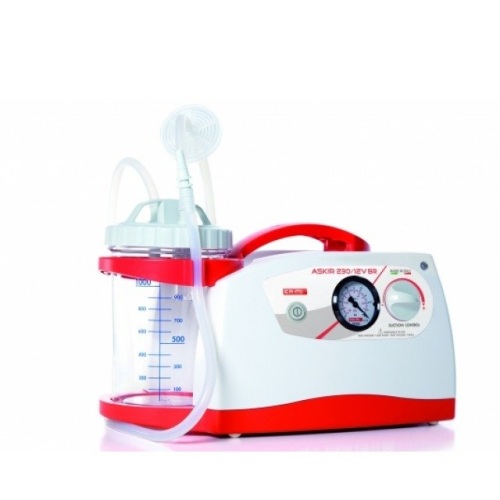

The Aspirator NEW ASKIR 230/12V BR is a desktop electric aspirator suitable for nasal, oral and endotracheal aspiration of body fluids (mucus or catarrh) in adults and children.
Suitable for emergency applications and for post-operative therapy, both in professional settings and in home care.
Recommended for tracheotomised patients, minor surgical applications and post-operative therapy in home care.
The New Askir 230/12V BR has 3 different operating options : AC/DC adapter, rechargeable battery, and 12V, the New Askir 230/12V BR is approved for continuous operation without overheating.
The New Askir 230/12V BR features a visual and audible alarm indicating the battery level.
The New Askir 230/12V BR is equipped with a vacuum gauge (mmHg and kPa) and vacuum regulator.
The aspirator New Askir 230/12V BR complies with EN 60601-1-11 "for use in the home care environment" standards and has an IP21 degree of protection.

The following accessories are supplied with the aspirator New Askir 230/12V BR:
- Fluid collection container with overflow valve system
- 6x10 silicone tubes (autoclavable)
- tapered connector ø 8-9-10mm
- Antibacterial and hydrophobic filter (one patient)
- CH20 Canula
- AC/DC universal adapter
- 12V car adapter

Technical specifications of the aspirator New Askir 230/12V BR :
- Motor : Oil and maintenance-free aspirator
- Power supply : 14V 4A with AC/DC universal adapter mod. UE60-140429SPA3 (100-240V ~ - 50 / 60Hz - 100VA) Internal rechargeable Pb battery (12V 4A)
- Rating : High vacuum/Low flow
- Max Capacity (without pot) : 16l/min
- Max Vacuum (adjustable) -0.75 Bar -75 KPa -563 mmHg
- Sound Level : 60.5dB
- Consumption : 4 A
- Autonomy : 80 min
- Charging time : 240 min
- Non stop operation
- Weight : 3.5 kg
- Dimensions : 35x21x18 cm
- IP rating : IP21
- Warranty 2 years
- Made in Italy

Accessories to be ordered separately for the New Askir 230/12V BR:
- Hose set, filter and catheter
- Aspiration probe PVC
- Lid for 1000/ 2000 ml bottle
- Filter 10 pcs.
- Bottle 1000 ml
- Bottle with lid 1000 ml
- Hose set and catheter
