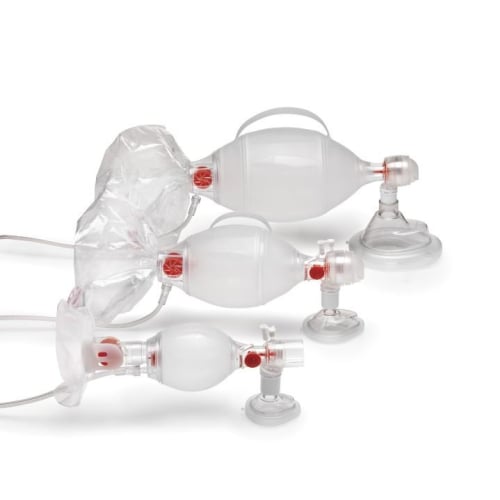

Ambu Spur II disposable breathing bag

The ambu spur II is used as a first-aid respirator in critical situations.

The disposable balloon is very convenient thanks to its integrated handle and thin-walled bag with a SafeGrip surface.

The ventilation balloon is equipped with a valve system with a valve for highly reliable functionality.

The balloon features a pressure-limiting valve system to prevent excessive pressure. The system can be switched off in cases where higher pressure is required.

Specifications:
- Self-inflating bag made of thin SEBS material with excellent recoil
- M-port for etCO2 monitoring and medication administration
- Connection for Ambu PEEP valves
- Swivel connector for flexible positioning
- Splash guard directs exhaled air and fluids away from the user
- Pressure gauge connection

Pressure relief valve: 4.0 kPa (40 cmH2O)

Ventilation balloon volume:
adult: 1547 ml
Paediatrics: 664 ml
Neonatology: 215 ml

Stroke volume:
Adult: one hand 600 ml - two hands 1000 ml
Paediatrics - infants: 450 ml
Neonatology - babies: 150 m

Reservoir volume
Adult: 2600 ml (bag)
Paediatrics - children: 2600 ml (bag)
Neonatology - babies: 300 ml (bag)

Benefits:
✓ Low weight for better handling
✓ Integrated handle
✓ Roughened surface for good grip
✓ Bag can be compressed for less storage space
✓ Latex and PVC free
✓ Complies with 2017/745 standards
